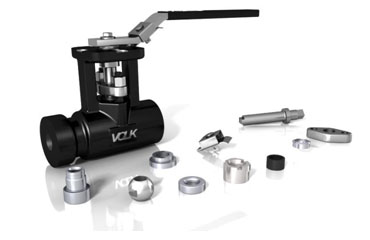

VOLK V1 Metal Seated Ball Valve

Ball Valves Series

One-piece Forged Steel Design
The design has no body or yoke joints thereby eliminating leakage

Quarter Turn Locking

ANSI Class:900 LB - 4500 LB
Sizes:1"— 4"
End Conn.:BW, RF, SW

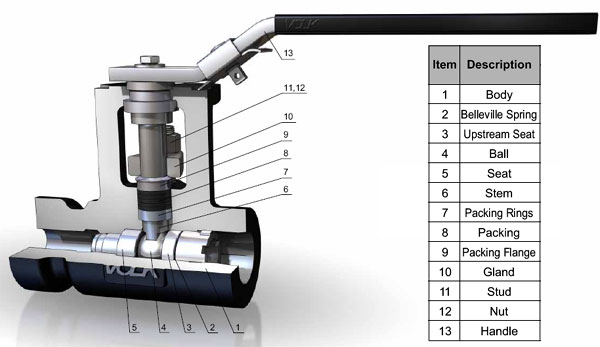

IMetal Seated Ball valves Features:

  • Zero Leakage
  • Double Stem Blow out Protection
  • Reliable packing gland design and the use of Belleville springs provide long lasting, maintenance-free, stem packing seal and tightness.
  • Isolated Body Cavity
  • Quarter Turn Valve
  • Application of HVOF Coatings
  • Inconel 718 Belleville Spring
  • Belleville Spring Guide Sleeve


Download PDF catalog: VOLK Valves catalog 2010
