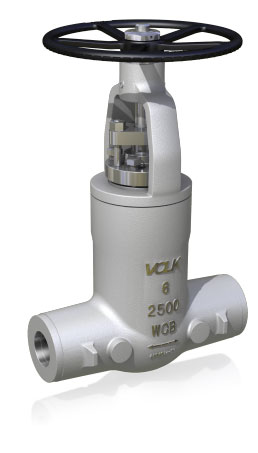

VOLK Gate Valve

VOLK Valves Series

Features:
Flexible wedge gate valves are designed for high pressure and high temperature applications where tight shutoff and reliable operation are critical.

Flexible wedge:
the wedge is of one piece and fully guided with cast central hub. It compensates for the distortion of the body seat by thermal cycling and bolt stresses from pipe connections and provides a tight seal in low differential pressure condition. It also prevents sticking or galling in severe operating conditions.

Stem: 100% sealing with smooth operation
Gland bolt: Stud for easy repacking
Art hole: For easy removal of retainer ring
Yoke: Two arms design for rigidity and accessibility
Graphite gasket: Excellent sealing performance even under thermal cycling
